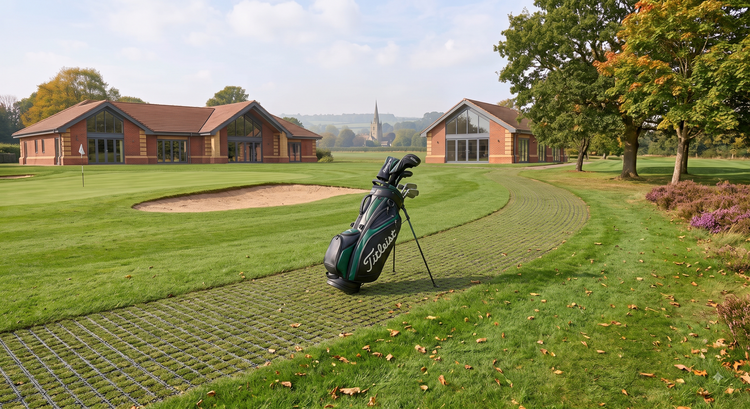

Caminhos para Carrinhos de Golfe
Percursos que suportam o tráfego sem marcar a paisagem
Caminhos para buggies que não parecem estradas. As grelhas IBRAN reforçam o solo sob relva ou gravilha, para que os percursos de lazer suportem tráfego constante e ligeiro sem comprometer o aspeto do campo, parque ou espaço verde.
Por que razão o reforço é essencial aqui
Os percursos de lazer têm um perfil de carga invulgar: os veículos são leves, mas circulam constantemente, sempre pela mesma linha, e fazem curvas apertadas nas extremidades. Um buggy de golfe pesa uma fração de um automóvel, mas uma centena deles por dia a percorrer o mesmo trajeto entre o tee e o fairway acaba por abrir uma cicatriz no relvado que nenhuma ressementeira consegue corrigir.
O binário de torção é parte do problema. Buggies, veículos de manutenção e carros utilitários são pequenos e leves, mas imprimem força às rodas a partir da posição de repouso — e é esse movimento de torção contra a superfície, e não o peso, que destroça o relvado. Acrescente orvalho, geada ou uma semana de chuva e o desgaste torna-se permanente numa só época.
Uma grelha alveolar resolve o problema. A zona radicular confinada ou a pedra suportam o tráfego sem deslizar lateralmente, pelo que o percurso mantém a forma indefinidamente. A relva cresce sobre as células e o caminho torna-se invisível; em alternativa, um enchimento de pedra calibrada define o percurso onde isso é desejado.
Onde esta solução se aplica
- Caminhos para buggies de golfe e travessias no campo
- Percursos de veículos de manutenção e conservação
- Parques de campismo e bungalows — parcelas e vias internas
- Áreas de estacionamento para caravanas e parcelas de turismo
- Parques rurais e percursos pedestres em herdades
- Alternativas a passadiços em reservas naturais
- Percursos de uso misto e ciclovias
- Acessos e percursos de maquinaria em instalações desportivas
Resumo técnico
| Sub-base | 75-150mm de material granular de granulometria aberta, consoante a utilização por veículos de manutenção |
| Enchimento | Zona radicular de base arenosa para relva, ou mistura calibrada 6-14mm para percurso definido |
| Carga típica | Buggies, veículos utilitários, cortadores de relva, tratores, bicicletas e peões |
| Aspeto | O enchimento em relva torna-se completamente invisível. O enchimento em pedra lê-se como caminho, não como estrada |
| Acessibilidade | Um enchimento calibrado e bem compactado proporciona uma superfície firme para cadeiras de rodas e buggies |
| Permeabilidade | Totalmente permeável. Sem escorrência para fairways, greens ou zonas de plantação |
| Vida útil de projeto | 25 anos, sujeito a instalação documentada |
| Material | 100% polipropileno reciclado, fabricado na UE a partir de polímeros reciclados |
Onde o desgaste realmente ocorre
Raramente é necessário reforçar todo o percurso. O desgaste nos percursos de lazer é concentrado — e concentra-se em locais previsíveis.
Num campo de golfe, é na saída junto ao tee, na curva junto ao green, no ponto de travessia entre buracos e no estrangulamento onde o percurso passa entre um bunker e um caminho. Num parque de campismo, é na entrada de cada parcela e na área de manobra no final da via. Num parque rural, é no portão, na interseção e nos vinte metros de cada lado de um banco ou miradouro.
São esses os locais onde os veículos param, arrancam e viram, e onde a superfície é solicitada de forma diferente de uma simples passagem em linha reta. Reforce esses pontos e resolve a maior parte do problema por uma fração do custo de pavimentar todo o percurso.
O restante percurso pode muitas vezes manter-se como está, ou receber uma estrutura mais ligeira. Vale a pena percorrer o local e mapear as zonas degradadas antes de especificar qualquer coisa: elas indicam exatamente onde o investimento deve ser aplicado.
Que profundidade de grelha escolher?
O número de uma grelha corresponde à profundidade da camada confinada. Em percursos de lazer, os veículos são leves, pelo que a questão é geralmente sobre a frequência de utilização e sobre o que mais circula no percurso.
- IBRAN®-X30 para percursos de buggies, peões e bicicletas com estrutura pouco profunda, e onde a escavação deve ser mínima junto a raízes, greens ou infraestruturas enterradas.
- IBRAN®-X40 como opção geral quando veículos de manutenção, cortadores de relva e carros utilitários partilham o percurso.
- IBRAN®-X50 quando tratores, reboques ou veículos de entrega utilizam o mesmo percurso, ou quando uma superfície em relva precisa de recuperar adequadamente entre utilizações.
Seja rigoroso quanto ao veículo mais pesado que utiliza o percurso. Num campo de golfe, esse veículo raramente é um buggy — é o trator do green, a máquina de top dressing ou o camião de entrega de areia.
Escolha do enchimento
Para um percurso invisível, utilize uma zona radicular de base arenosa preenchida ao nível do topo das células, com uma mistura de sementes de elevada resistência ao desgaste. A relva cresce sobre a grelha e o percurso desaparece no relvado envolvente — o que num campo de golfe ou num espaço paisagístico é, regra geral, o objetivo principal.
Para um percurso definido, utilize uma mistura calibrada 6-14mm, angular e limpa. Uma mistura granulométrica compacta melhor do que uma granulometria única, porque a pedra mais fina preenche os vazios entre a mais grossa, e a granulometria superior mais fina proporciona uma superfície confortável para peões e rodas estreitas.
Agregados locais ou decorativos funcionam bem neste contexto, permitindo que o caminho se integre na envolvente em vez de ser imposto sobre ela. Qualquer que seja o enchimento escolhido, nivele com o topo das células e não acima delas: pedra acima das células migra para a relva adjacente.
How it goes in
Walk the route and map the existing wear. Bare patches, ruts and desire lines tell you where vehicles actually go and where reinforcement will earn its keep.
Set out the width generously at turns and pull-offs. A route that is wide enough on the straight is often too narrow where a buggy swings.
Strip turf and topsoil to a firm formation, removing soft spots rather than building over them.
Lay a woven geotextile across the formation, lapping joins by at least 300mm.
Lay and compact an open-graded sub-base in layers, to a depth set by the heaviest vehicle using the route rather than the lightest.
Blind with a thin levelling layer and screed it flat. On a narrow route every dip reads, and on a golf course it will be noticed.
Push-fit the grids together along the route, cutting to line at the edges and around trees, sprinklers and drainage.
Restrain both edges along the full length. On a route two metres wide, the edges are most of the surface.
Fill the cells level with the cell tops and brush in. Seed or turf grass sections and keep traffic off while they establish.
Full step-by-step detail is in our installation guides.
Turns, stops and pull-offs
These take several times the wear of the running length, and they are worth treating as separate details rather than as more of the same path.
A buggy turning at a green is applying torque with the vehicle almost stationary, which grinds rather than rolls. The same happens at every pitch entrance on a holiday park and every junction on a park route. Widen the reinforced area at these points, take it further out than the geometry strictly requires, and consider a stone fill even where the rest of the route is grass.
Where a route ends, extend the reinforcement past the end point. Vehicles turn round somewhere, and that somewhere becomes the new bare patch if you stop the surface at the last tidy line.
Keeping a golf course looking like a golf course
The reason most courses resist buggy paths is aesthetic, and it is a legitimate objection: a concrete or tarmac ribbon changes the character of a hole permanently and cannot be undone.
A grass-filled grid does not. The route carries the traffic invisibly, the turf across it is mown with everything else, and from the tee there is nothing to see. Where a defined path is wanted, a stone fill in a local aggregate reads as a path through the landscape rather than as infrastructure laid across it.
It also keeps the surface permeable, so water does not run off a hard ribbon onto the fairway or into a bunker, which is the second complaint courses tend to have about bound paths.
Frost, dew and wet weather
Many clubs and parks restrict buggy use in poor conditions, and the restriction exists because unreinforced turf is at its most vulnerable when soft or frozen.
Reinforcement changes the calculation. A confined rootzone cannot shear into ruts, and the fully permeable build-up drains rather than holding water, so a reinforced route stays usable when the surrounding ground does not. On a golf course that can mean buggy income on days that would otherwise be cart-path-only or closed entirely.
It does not override agronomy: frozen turf is still fragile, and local policy still applies. But the route itself is no longer the limiting factor.
Get it right first time
The one thing worth knowing: specify for the maintenance vehicle, not the buggy.
Almost every leisure route is designed around the vehicle it is named after and then used by something considerably heavier. Buggy paths carry the greens tractor. Campsite roads carry the service lorry and the refuse truck. Park routes carry the ranger's pickup and the contractor's trailer.
Work out the heaviest vehicle that will realistically use the route and build the sub-base and grid depth for that. The extra depth is a modest cost across a narrow route, and it is the difference between a path that lasts twenty years and one that fails the first time a delivery comes down it.
Ask our engineer
Questions about depths, where to reinforce, or which system fits your route? Ask below, or get in touch directly.
Design your surface
Set out the area, choose a grid and an infill, and see the finished surface. The schedule and the specification follow.
Permeable surface specification
Schedule
Assumptions
Specification
Common Questions
Why do golf buggies wear out turf so quickly?
It is torque rather than weight. Buggies and utility vehicles are light but drive their wheels hard from a standstill, and that twist against the surface tears turf apart.
Combine it with a hundred vehicles a day following exactly the same line and turning tightly at each end, and a scar forms that overseeding will not fix.
Do I need to reinforce the whole buggy route?
Rarely. Wear on leisure routes is concentrated in predictable places: the pull-off by the tee, the turn at the green, crossings between holes, pitch entrances on a holiday park, and junctions on a park route.
Reinforce where vehicles stop, start and turn and you fix most of the problem for a fraction of the cost. Walk the site and map the bare patches before specifying anything.
Will a buggy path spoil the look of the course?
A grass-filled grid is invisible. The route carries the traffic below the surface, the turf across it is mown with everything else, and from the tee there is nothing to see.
Where a defined path is wanted, a stone fill in a local aggregate reads as a path through the landscape rather than as infrastructure laid across it, and stays permeable so water does not run off onto fairways or into bunkers.
Which grid depth should a buggy path use?
The 30mm grid suits buggy, pedestrian and cycle routes where the build-up has to stay shallow. The 40mm is the general choice where maintenance vehicles, mowers and utility carts share the route. Step up to 50mm where tractors, trailers or delivery vehicles use the same route.
Specify for the heaviest vehicle, which on a golf course is usually the greens tractor rather than a buggy.
Can reinforced routes be used in wet or frosty conditions?
A confined rootzone cannot shear into ruts and the build-up is fully permeable, so a reinforced route stays usable when the surrounding ground does not. For a club that can mean buggy income on days that would otherwise be cart-path-only.
It does not override agronomy: frozen turf is still fragile and local policy still applies, but the route itself is no longer the limiting factor.
What should leisure route grids be filled with?
For an invisible route, a sand-dominant rootzone filled level with the cell tops, with a hard-wearing amenity seed mix.
For a defined path, a 6-14mm graded blend, angular and clean: a blend packs tighter than a single size and the finer top size is comfortable underfoot and under a narrow wheel. Local or decorative aggregate lets a path match its setting.
Are reinforced paths suitable for wheelchairs and mobility scooters?
A densely packed graded stone fill gives a firm, level surface suitable for wheelchairs, mobility scooters and pushchairs. Density is what matters rather than particle size: a graded blend packs solid, where single-size stone leaves voids that small wheels drop into.
This makes reinforced routes a good fit for country parks and nature reserves with accessibility commitments.
How wide should a buggy path be?
Wider at turns and pull-offs than on the straight, because a route that is adequate on the straight is often too narrow where a vehicle swings.
Where a route ends, extend the reinforcement past the end point: vehicles turn round somewhere, and that somewhere becomes the new bare patch if the surface stops at the last tidy line.
Can grids be used for caravan and camping pitches?
Yes, and pitch entrances are one of the highest-value places to use them, because that is where every vehicle turns onto soft ground.
A grass fill keeps the site looking green, while a graded stone fill gives a firm, free-draining hardstanding for touring pitches and awnings.
What maintenance do reinforced leisure routes need?
Grass sections are mown, fed and overseeded as amenity grass, and mowers pass straight over because the cell tops sit below the growing crown. Stone sections need levels checking after the first winter and any settled cells brushing back up.
The grid itself needs nothing and carries a 25 year warranty subject to documented installation.
